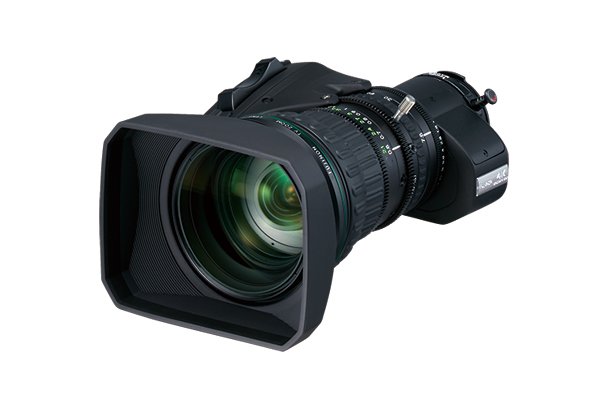

Fujinon UHD 4K 7.6-137mm f/1.8 ENG Zoom Lens with 2x Extender & S10 Drive
Original price was: $25,800.00.$12,500.00Current price is: $12,500.00.
- 7.6-137mm ENG-Style Zoom Servo Lens
- UHD 4K Compatible Resolution
- f/1.8 Aperture, 18x Zoom, 2x Extender
- S10 Drive Unit with Auto Initialization
- Suitable for News and Sports Coverage
3 in stock
Capture sports, news, and outdoor ENG footage with the UHD 4K 7.6-137mm f/1.8 ENG Zoom Lens with 2x Extender & S10 Drive from Fujinon, a 7.6 to 137mm zoom lens offering 4K capture in a lightweight, compact form. This wide-to-telephoto 18x zoom doubles to 48x or 15.2 to 274mm when you engage its built-in 2x extender. The lens now comes with the updated S10 drive unit, which features even smoother performance, new firmware, more precise focus/zoom/iris control, minimal focus breathing, and automatic calibration.
The digital-servo UA18x7.6BERD features a well-balanced design for handheld use, 16-bit encoding in the S10 drive unit for virtual system use, and a wide aperture for smooth, natural bokeh. Features include a zoom limit with an override switch, selectable zoom modes, a zoom speed cruise feature, and an adjustable maximum speed limit. The 4K Premier series 4K zoom lens also offers anti-backlash gearing for precise servo control and serial digital control of focus, iris, and zoom.
Key Features
- 4K optical performance in a compact, lightweight design
- Updated S10 drive unit features smooth performance, new firmware, more precise focus/zoom/iris control, minimal focus breathing, automatic calibration, and a 16-bit high-resolution encoder
- 7.6 to 137mm ultrawide-to-telephoto lens for 2/3″ cameras
- 15.2 to 274mm range with included 2x extender
- New ergonomic digital grip
- 18x zoom ratio
- Fast f/1.8 max aperture from 7.6 to 137mm
- 16-bit encoding for virtual system use
| Model Name | UA18x7.6BERD |
|---|---|
| Focal Length | [1x] 7.6-137mm [2x] 15.2-274mm |
| Zoom Ratio | 18x |
| Extender | 2x |
| Maximum Relative Aperture (F-No.) | 1:1.8(7.6-102mm) 1:2.4(137mm) |
| Minimum Object Distance (M.O.D.) from Front Lens | 0.6m |
| Object Dimensions at M.O.D. 16 : 9 Aspect Ratio | [1×] 7.6mm 696mm × 392mm 137mm 41mm × 23mm [2×] 15.2mm 362mm × 204mm 274mm 21mm × 12mm |
| Angular Field of View 16 : 9 Aspect Ratio | [1×] 7.6mm 64.5°x39° 137mm 4°x2.3° [2×] 15.2mm 35°x20.1° 274mm 2°x1.1° |
| Filter Thread | M82x0.75 |
| Approx. Size | Φ85x204mm(ΦxLength) |
| Approx. Mass | 1.74kg (without lens hood) |
